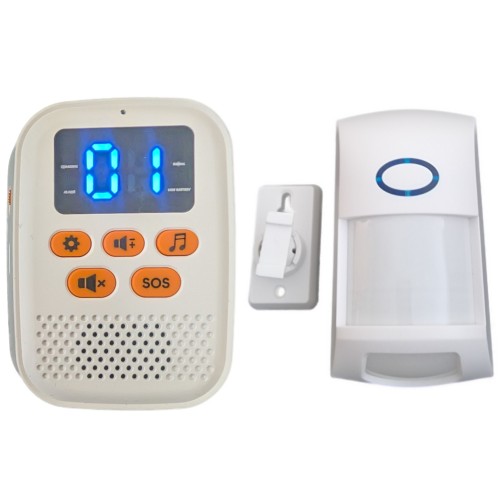

PCP-PIR Wireless Movement Sensor with Alarm Pager

✓ Dual angle detection improves reliability and prevents crawl by or low movement avoidance
✓ Instant wireless alerts to the rechargeable KFD PA pager for rapid caregiver response
✓ Quick installation with wall/frame mounting bracket for flexible placement
✓ Supports multi zone monitoring with up to 30 paired transmitters for comprehensive safety coverage

The PCP PIR Wireless PIR Movement Sensor Kit offers fast fit, dependable motion detection for care and security environments. Its dual sensor design monitors both floor level movement and the main detection zone, providing strong protection against crawling or low profile movement. When activated, the PIR transmitter sends an immediate wireless alert to the Medpage rechargeable KFD PA pager, which displays the device ID for quick identification. With simple bracket mounting and support for up to 30 transmitters, the system is ideal for senior wandering prevention, door egress monitoring, and general indoor/outbuilding security.

Key Features

• Dual sensor PIR design detects both floor level and standard movement zones for enhanced coverage
• Anti crawl protection reduces the chance of bypassing detection in care or security environments
• Instant wireless alarm transmission to the rechargeable KFD PA pager
• Clear device identification shown on the pagers LCD display for fast response
• Ideal for senior wandering prevention, door egress monitoring, and general security
• Suitable for indoor areas and outbuildings, including sheds and garages
• Quick installation with included wall/frame mounting bracket
• Supports up to 30 transmitters for flexible multi zone monitoring and safety systems

Technical Features KFDPIR Movement Sensor
Radio Frequency: 433MHz
Transmission range: Up to 200M in optimum conditions
Power: 2 x AAA Alkaline batteries (included)
Dimensions: H97mm W55mm D35mm (including bracket 65mm)
Working temp: -10C - +50C
Standby current: 9uA
Working current: <10mA
Transmit confirm LED
Low battery warning LED
Detection beam 120
Detection range: Up to 15M

Technical Details KFD-PA Alarm Pager
Caller ID display for up to 30 devices
16 x Selectable ringtones with volume control
Ringtone volume selection with vibrate only option
Rechargeable (3-day operation from 2-hour charge)
3.7V 600mAh rechargeable battery (USB C charger cable included.
Low battery warning flashing LED
Easy transmitter pairing for adding new devices
DIMS; 85 x 60 x 18mm
Gross weight: 66g
Receiving range: Up to 100M (open field)
