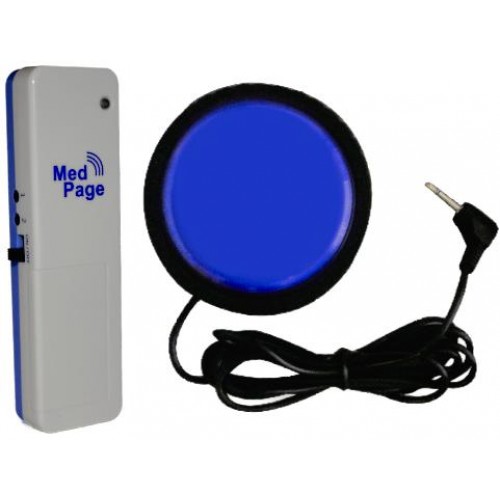

NMDTX-LIB01 Long range alarm notification transmitter with large surface area Jelly Switch

? Easy to press large surface area call switch suitable for disabled help call signalling
? Anyone with poor dexterity can operate this simple help call alarm
? Long range alarm notification signalling, up to 400M (open field)
? Suitable for large Care Homes, Hospitals and large or stone build building

When people cannot use a typical call pendant button the LIB-01 switch provides an effective solution. The LIB-01 can be customised by inserting a photo or graphic under the protective clear plastic cover making it suitable for people with cognitive impairment or learning disability.

Key Features

• Large surface area alarm trigger switch with alarm notification transmitter
• Customisable message transmitted to data message pager (pager not included)
• Beneficial for people with limited mobility, poor dexterity, Arthritis etc.
• Suitable for single or multiple call button systems
• Quick and easy to install and use, completely battery operated

Key Features NMDTX Alarm Transmitter

• Multi-Function sensor transmitter
• Long range transmission (up to 400M)
• 2 x Trigger Input Sockets 2.5mm & 3.5mm
• Trigger mode selectable for N/O or N/C
• Secure On/Off Power switch (selectable)
• FSK transmission 433.92MHz @ 10mW
• POCSAG Message programmable
• Optional programming software available (for trade only)
• Dimensions: L 145mm W 40mm D 22mm
• Powered by 2 x AAA batteries
• 12 Month typical use before battery change
• Low battery warning LED with transmission message
• System status LED
• Mode Selection Options:
• Bed/Chair leaving alarm (with 15-minute alarm delay option)
• Floor pressure mat alarm
• Magnetic door sensor alarm (with door open timer)
• Water level & Enuresis sensor detection
• Programmable alert messages (when used with data pager EM300)
• Pre-programmed standard messages for Bed, Door, Floor mat.
• Multi-Receiver addressable

Technical Features LIB-01 Large Contact Switch
Dimensions: 65mm activation area
Weight: 30g
Connection lead: 1.4 metres terminated with a 3.5mm jack plug
Activation type: Pressure
Activating force: 150-200g
