NMDTX-CKIT Under-chair cushion long range chair exit sensor kit for care homes

? High-performance chair exit detection sensors for single and multiple chair monitoring
? Long range digital transmission up to 400M with optional signal repeaters
? Chair exit alarm signal transmitted to data message pager and or desktop caller display
? Multi-function selectable operation mode: chair sensor, floor pressure mat

The NMDTX transmitter designed and manufactured by Medpage provides long range radio alarm signalling for larger care establishments. The transmitter is programmed with default selectable call messages or can be custom programmed on request. The professional grade sensor plugs into the transmitter and is positioned under the patients chair cushion ready for exit detection. The carer pager, on receipt of an alarm signal displays a caller ID message.

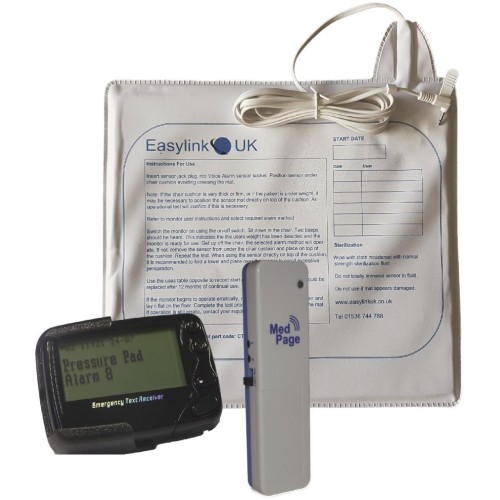

Kit includes 1 x chair sensor, 1 x alarm transmitter, 1 x digital message pager, all batteries.

Key Features

• Long transmission range chair exit detection system
• Suitable for most building types (including stone built)
• POCSAG format data messaging
• Single or multiple bed/chair monitoring (unlimited)
• Can be configured to operate with optional chair, bed, enuresis and epilepsy sensors
• Factory pre-programmed for quick DIY installation
• User ID displayed by pager (customisable)

Technical Features NMDTX Transmitter
Multi-Function sensor transmitter
Long range transmission (up to 200M)
2 x Trigger Input Sockets 2.5mm & 3.5mm
Trigger mode selectable for N/O or N/C
Secure On/Off Power switch (selectable)
FSK transmission 433.92MHz @ 10mW
POCSAG Message programmable
Dimensions: L 145mm W 40mm D 22mm
Powered by 2 x AAA batteries
12 Month typical use before battery change
Low battery warning LED with transmission message
System status LED
Mode Selection Options:
Bed/Chair leaving alarm (with 15-minute alarm delay option)
Floor pressure mat alarm
Magnetic door sensor alarm (with door open timer)
Water level & Enuresis sensor detection
Programmable alert messages (when used with data pager EM300)
Pre-programmed standard messages for Bed, Door, Floor mat.
Multi-Receiver addressable

Technical Features CT-3 Bed Sensor
750mm x 450mm x 8mm
3M connector lead terminated with 2.5mm mono jack plug
High quality pressure mat sensor
Durable long-life construction
Suitable for chair occupancy monitors

EM300 Digital Message Pager
4 - lines message display (2 lines display in text zoom mode)
POCSAG paging (message sending)
Overall dimensions w 60mm h 42mm d 18mm
Display area 52mm x 28mm character height 6mm
Choice of 4 tones + vibration alert
Display back light
Low battery alert
Powered by 1 AAA battery (lasts 6 weeks based on 4 alerts per day)
Weight including battery & snap-on belt clip 78g
8 paging addresses
Frequency 433.92mhz
Time & date display
Stores up to 19 messages
Time alarm
Supplied with battery and sturdy snap-on belt clip
