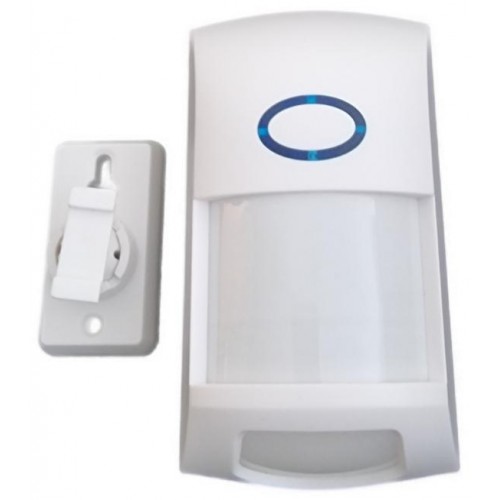

KFDPIR Radio Frequency PIR Movement Sensor Alarm Transmitter

? PIR movement sensor alarm transmitter
? For general security applications and senior wander detection
? Quick and easy installation with wall/frame mount bracket
? Thief Anti-Crawl dual-sensor design

KFDPIR Provides a quick to fit and reliable PIR movement detection solution at an affordable price. The dual sensor design provides detection from two angles: floor and main beam detection zone. Pair with an alarm pager and or the KFD1 GSM/Wi-Fi alarm security hub to receive security breach notifications either on or off-site.

Compatible Alarm Receivers

KFD1 GSM/Wi-Fi security dialler
MPPLV4 Radio Pager
MP-PAG31 3-Channel radio pager
NMDRX 5-Channel portable alarm receiver

Key Features

• Radio frequency motion sensor
• Up to 200M alarm transmission range (open field)
• Quick and easy installation and setup with alarm device
• For general indoor security applications
• Useful for monitoring people who may wander
• Dual beam sensor detects floor crawling thiefs
• Requires compatible alarm receiver
• Pet safe algorithm reduces pet alarm activations

Technical Features KFDPIR Movement Sensor
Radio Frequency: 433MHz
Transmission range: Up to 200M in optimum conditions
Power: 2 x AAA Alkaline batteries (included)
Dimensions: H97mm W55mm D35mm (including bracket 65mm)
Working temp: -10C - +50C
Standby current: 9uA
Working current: <10mA
Transmit confirm LED
Low battery warning LED
Detection beam 120
Detection range: Up to 15M
