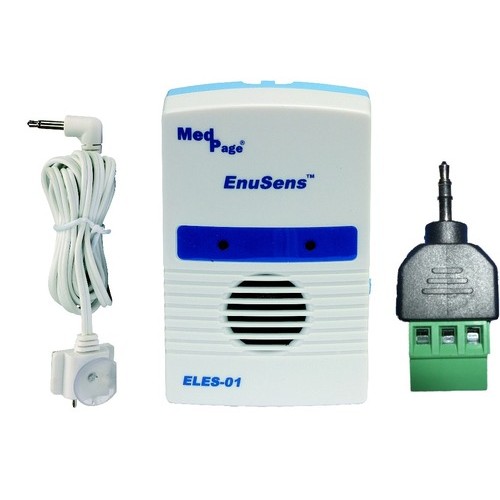

Water overflow & leak detector (ELES-01)

✓ Flood, bath & sink water overflow alarm
✓ Detects when water level reaches sensor and then sounds an audible alarm
✓ Sensitivity control to reduce false alarms caused by condensation etc
✓ Supplied with suction cup for easy placement

The ELES-01 water overflow detector alarm has many uses in the home and for commercial applications. The controller has an integral tone alarm with a low power relay to provide a switched contact on fluid detection.

Key Features

• Protect yourself from leaking water
• Sensor with suction cup included
• Raise an alarm to overflowing baths or sinks
• Monitor areas liable to flooding or damp
• Monitor new plumbing connections
• Built in siren output: 95dB & 75dB or silent
• Internal alarm can be silenced
• Low battery warning tone and LED
• Supplied with relay/alarm connector plug
• Compatible with the MPPL pager
• Supplied with batteries providing 1 year of use (typical)

Transmitter kits are available to enable remote signalling either short or long range. See NMDTX with EM300 pager

Technical Information
Dimensions: H 85mm W 55mm D 20mm
Power source: 3 x AAA batteries or 6V DC from power adaptor
Battery life: 1 year typical
Sensor lead: 2M.
Relay output lead (supplied) 2M
Relay contact switching: Max 100mA
