TumbleCare DTXTUMO4K Heavy duty non-slip floor pressure mat with long range transmitter (400M) & digital data message pager

✓ Long range heavy duty pressure sensor with programmable data message pager
✓ Alerts to patient wandering, bed leaving and general security applications
✓ Suitable for use as a doormat or on top of carpet or floor tiles
✓ Perfect for use in care homes, hospitals and larger residences

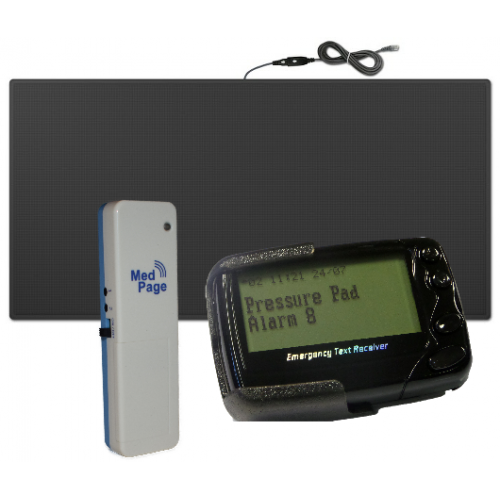

This kit is recommended for larger buildings, stone-built properties or buildings with known signalling difficulties. The pressure mat 91cm x 61cm can be positioned on top of rugs, carpets, or directly on hard floors and will transmit an alarm signal when a person stands on it. The kit comprises of NMDTX long range POCSAG transmitter, 1 x MED-04BP floor pressure mat and 1 x EM300 pager. An unlimited number of long-range devices can be configured into a multiple care system.

The pager is programmable with a message of your choosing (up to 40 characters) to display when the alarm is triggered. Default message is Pressure Mat Alarm.

Key Features

• Quick and easy installation
• Non-slip rubberised surface
• Robust, lightweight pager with a removable belt clip
• Enhanced back light display for ease of use
• Choice of 4 tones and vibration alert
• Real time clock with day/date & alarm functions
• Unlimited transmitters can be used with the pager. Each programmable with a custom message to display when alarm triggered.
• Low battery warning

Technical Features (MED04BP Floor Pressure Mat)
Dimensions: 91.44cm x 60.96cm
Cable connection
Cable length: 2.5M
Connector type: RJ11
Chlorine resistant to 10pp1000

Technical Information EM300 pager
Pager type: Alphanumeric
Power source: 1 x Alkaline AAA battery
Dimensions: 60 mm x 42 mm x 18 mm
Alert type: 4 tones and vibration alert
Weight: 78g
Transmission frequency: 433.92 mhz
Display: 4 lines of text on backlit display
Transmission range: 400 metres
Message storage: Up to 20 messages
Case material: Heavy gauge polycarbonate plastic

Technical Information NMDTX Transmitter
Multi-Function sensor transmitter
Long range transmission (up to 400M)
2 x Trigger Input Sockets 2.5mm & 3.5mm
Trigger mode selectable for N/O or N/C
Secure On/Off Power switch (selectable)
FSK transmission 433.92MHz @ 10mW
POCSAG Message programmable
Dimensions: L 145mm W 40mm D 22mm
Powered by 2 x AAA batteries
12 Month typical use before battery change
Low battery warning LED with transmission message
System status LED
Mode Selection Options:
Bed/Chair leaving alarm (with 15-minute alarm delay option)
Floor pressure mat alarm
Magnetic door sensor alarm (with door open timer)
Water level & Enuresis sensor detection
Programmable alert messages (when used with data pager EM300)
Pre-programmed standard messages for Bed, Door, Floor mat.
Multi-Receiver addressable
